FRONT SIDE FRAME (PARTIAL CUTTING) REMOVAL

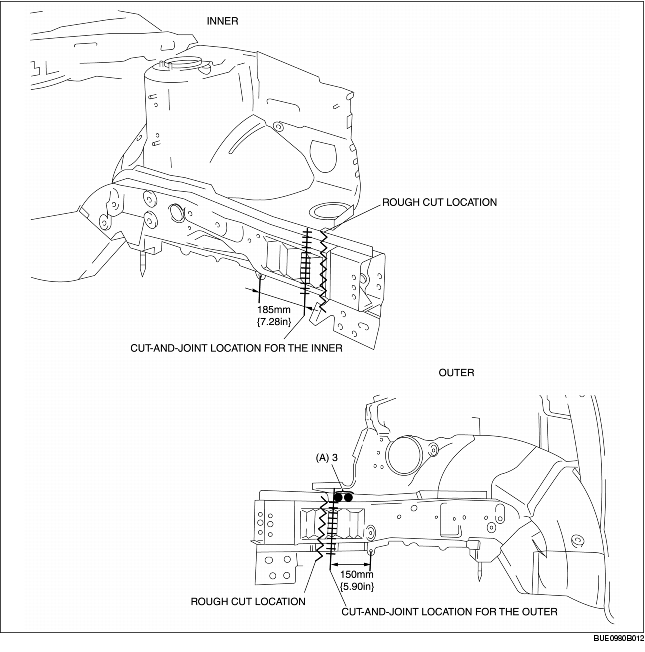

CUE098053300B03

1. To facilitate rough cutting of the outer, drill the 3 weld locations indicated by (A) and bend the wheel apron panel (front) upward.

2. Rough cut at the locations shown in the figure to remove damaged parts.
