FRONT FRAME (REAR) REMOVAL

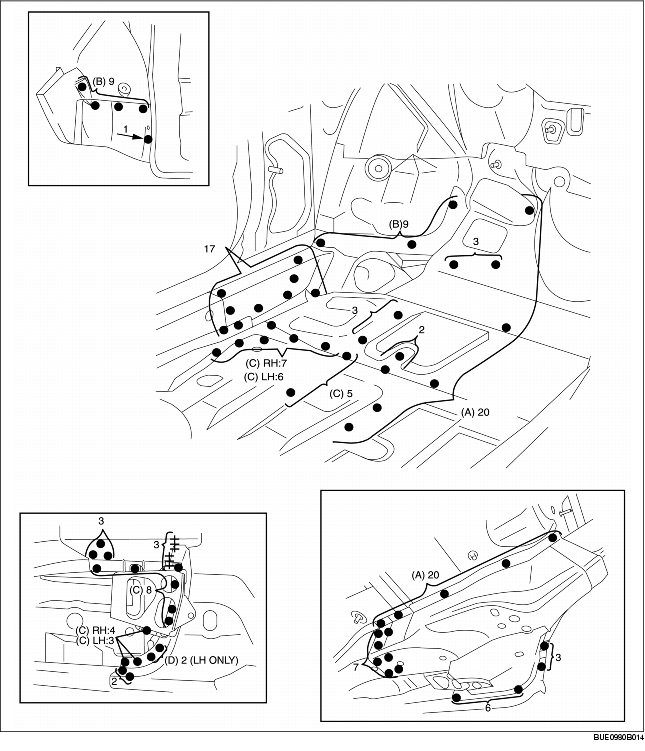

1. Drill the 20 weld locations indicated by (A), 9 locations indicated by (B), and 12 RH and 11 LH weld locations indicated by (C) from the room side.

Note

• The weld locations (A), (B) and (C) in the figure indicate the same locations.

2. Drill the 2 weld locations indicated by (D) from the bottom, as they cannot be seen from the room side.
