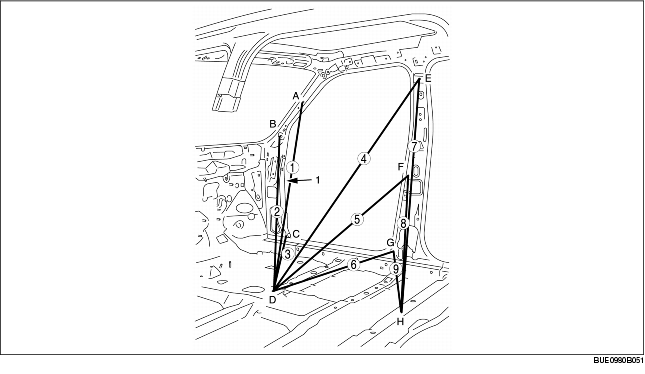

ROOM STRAIGHT-LINE DIMENSIONS (1)


Measured location	Dimensions mm {in}
1	1,180 {46.47}
2	1,114 {43.86}
3	852 {33.55}
4	1,299 {51.14}
5	R.H.D. models	978 {38.50}
5	L.H.D. models	942 {37.09}
6	754 {29.70}
7	RH:1,107 {43.60}, LH:1,162 {45.75}
8	R.H.D. models	RH:827 {32.55},
	R.H.D. models	LH:909 {35.78}
	L.H.D. models	RH:864 {34.02},
	L.H.D. models	LH:942 {37.09}
9	RH:830 {32.71}, LH:912 {35.92}
I-I'	R.H.D. models	1,482 {58.34}
I-I'	L.H.D. models	1,489 {58.64}
