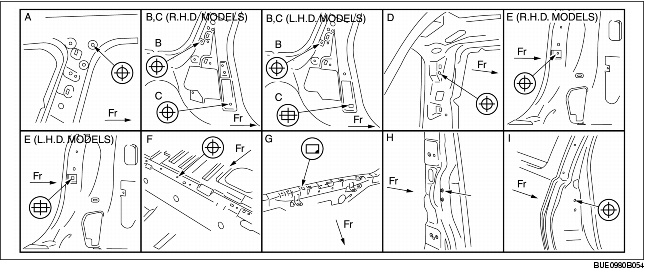

ROOM STRAIGHT-LINE DIMENSIONS (2)


Measured location	Dimensions mm {in}
1	R.H.D. models	RH:1,186 {46.69},
	R.H.D. models	LH:1,235 {48.62}
	L.H.D. models	RH:1,195 {47.05},
	L.H.D. models	LH:1,243 {48.94}
2	RH:1,113 {43.83}, LH:1,176 {46.30}
3	R.H.D. models	RH:917 {36.10},
	R.H.D. models	LH:991 {39.01}
	L.H.D. models	RH:911 {35.88},
	L.H.D. models	LH:985 {38.78}
4	RH:1,548 {60.96}, LH:1,586 {62.44}
5	R.H.D. models	RH:1,506 {59.29},
	R.H.D. models	LH:1,546 {60.86}
	L.H.D. models	RH:1,504 {59.21},
	L.H.D. models	LH:1,544 {60.79}
6	R.H.D. models	RH:1,429 {56.28},
	R.H.D. models	LH:1,435 {56.49}
	L.H.D. models	RH:1,430 {56.30},
	L.H.D. models	LH:1,438 {56.62}
H-H'	1,520 {59.84}
I-I'	1,510 {59.45}
