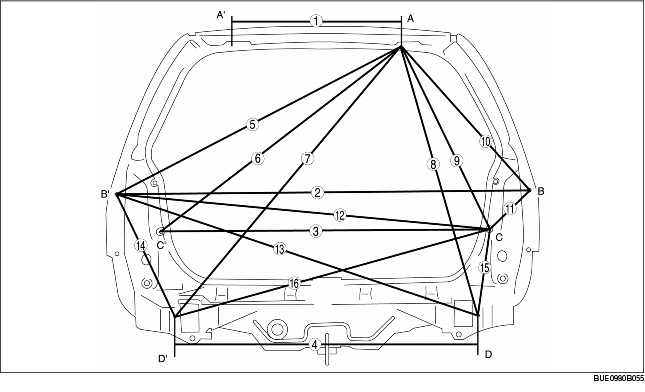

REAR BODY STRAIGHT-LINE DIMENSIONS
CUE098070002B01
|

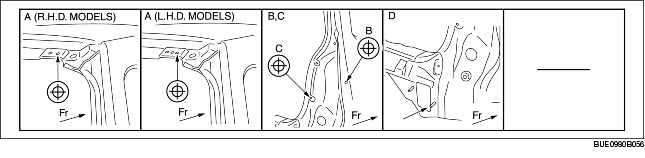

Measured location
|
Dimensions mm {in}
|
|
1
|
R.H.D. models
|
725 {28.54}
|
|
L.H.D. models
|
731 {28.78}
|
|
2
|
1,600 {63.00}
|
|
3
|
1,254 {49.37}
|
|
4
|
1,145 {45.08}
|
|
5
|
1,323 {52.09}
|
|
6
|
1,247 {49.10}
|
|
7
|
1,440 {56.69}
|
|
8
|
1,113 {43.82}
|
|
9
|
799 {31.47}
|
|
10
|
762 {30.00}
|
|
11
|
217 {8.54}
|
|
12
|
1,433 {56.42}
|
|
13
|
1,450 {57.09}
|
|
14
|
521 {20.51}
|
|
15
|
343 {13.50}
|
|
16
|
1,246 {49.06}
|
