CABIN SIDE FRAME STRAIGHT-LINE DIMENSIONS
CUE098070010B01

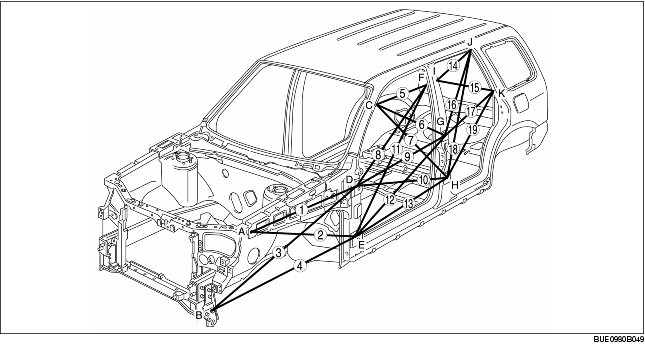

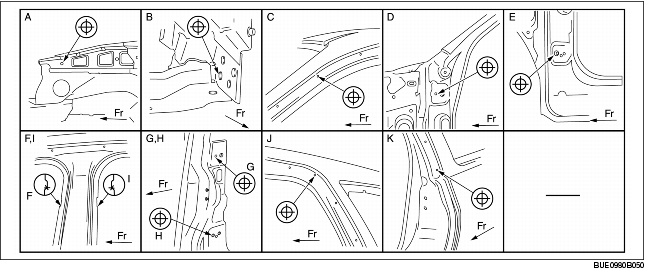

R.H.D. models
|
Measured location
|
Dimensions mm {in}
|
|
1
|
864 {34.01}
|
|
2
|
921 {36.25}
|
|
3
|
1,272 {50.07}
|
|
4
|
1,169 {46.02}
|
|
5
|
591 {23.26}
|
|
6
|
765 {30.11}
|
|
7
|
993 {39.09}
|
|
8
|
1,163 {45.78}
|
|
9
|
1,048 {41.25}
|
|
10
|
1,068 {42.04}
|
|
11
|
1,337 {52.63}
|
|
12
|
1,107 {43.58}
|
|
13
|
1,017 {40.03}
|
|
14
|
658 {25.90}
|
|
15
|
902 {35.52}
|
|
16
|
990 {38.97}
|
|
17
|
1,003 {39.48}
|
|
18
|
1,235 {48.62}
|
|
19
|
1,131 {44.52}
|

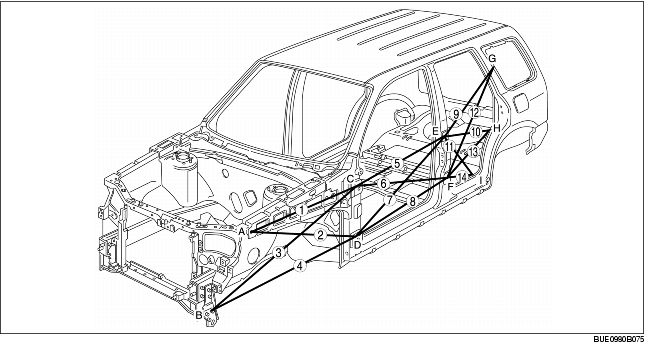

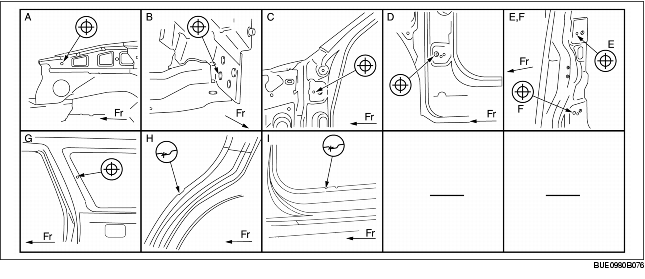

L.H.D. models
|
Measured location
|
Dimensions mm {in}
|
|
1
|
868 {34.17}
|
|
2
|
925 {36.42}
|
|
3
|
1,275 {50.20}
|
|
4
|
1,171 {46.10}
|
|
5
|
1,039 {40.91}
|
|
6
|
1,062 {41.81}
|
|
7
|
1,097 {43.19}
|
|
8
|
1,009 {39.72}
|
|
9
|
1,095 {43.11}
|
|
10
|
777 {30.59}
|
|
11
|
583 {22.95}
|
|
12
|
1,270 {45.00}
|
|
13
|
806 {31.73}
|
|
14
|
396 {15.59}
|
