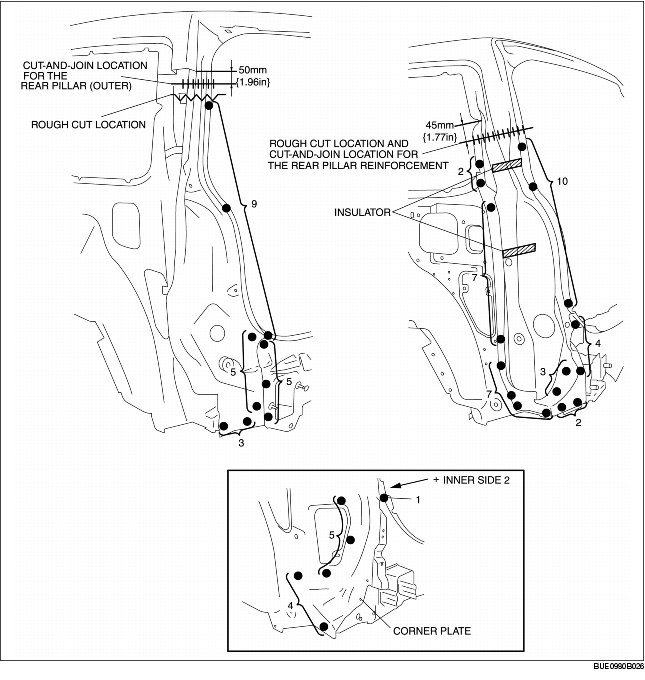

REAR PILLAR (OUTER) AND REAR PILLAR REINFORCEMENT REMOVAL

1. Remove the rear pillar (outer).

2. Remove the rear pillar reinforcement.

Caution

• Avoid cutting with a blowtorch or similar tools as the insulator (shaded area) is flammable.

3. Remove the corner plate.
