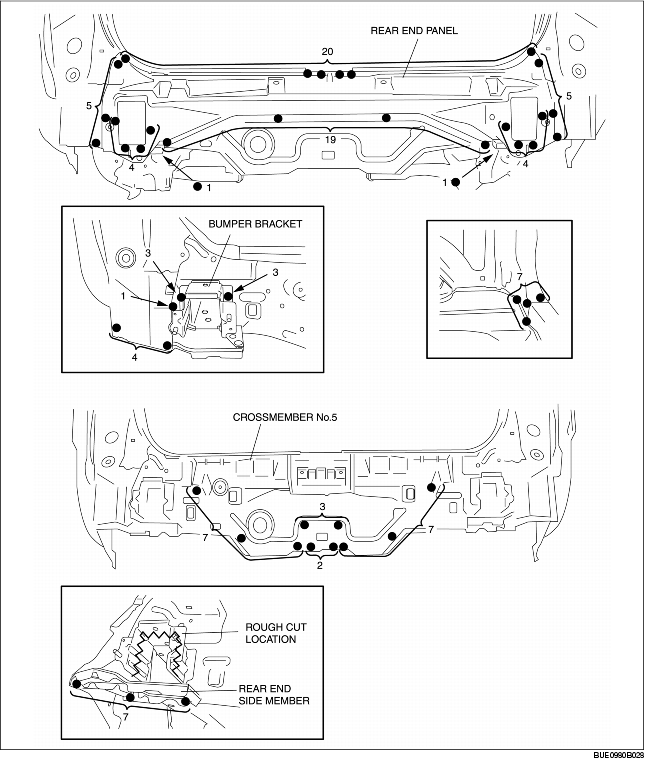

REAR END PANEL AND CROSSMEMBER No.5 REMOVAL


CUE098070750B01

1. Remove the rear end panel.

2. Remove the rear end side member.

3. Remove the bumper bracket, drill each weld location, and remove the crossmember No.5 while pulling it from above.
