KOEO/KOER SELF-TEST [AJ (3.0L Duratec)]


id0102a4801200

1. Perform the necessary vehicle preparation and visual inspection.

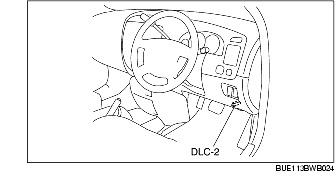

2. Connect the WDS or equivalent to the vehicle DLC-2 16-pin connector located under the dashboard on the driver's side.

3. Perform the KOEO/KOER Self-Test using the WDS or equivalent.

4. Retrieve the DTCs using the WDS or equivalent.
