NO.1 MELTING OF MAIN OR OTHER FUSES [AJ (3.0L Duratec)]
id0103a7800700
|
1
|
Melting of main or other fuses
|
|
[TROUBLESHOOTING HINTS]

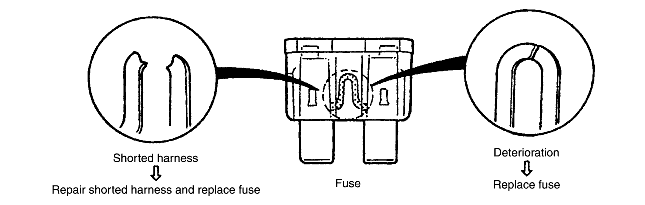

Inspect condition of fuse.
|
|
|
|
Damaged Fuse
|
Related Wiring Harness
|
|
MAIN
|
MAIN fuse
• BTN2 fuse
• ADD FAN fuse
• MAIN FAN fuse
• Generator
• IG MAIN fuse
|
|
BTN2
|
BTN2 fuse
• ROOM fuse
|
|
ROOM
|
ROOM fuse
• DLC
|
|
ADD FAN
|
ADD FAN fuse
• Low speed fan control relay
-
- Cooling fan motor No.2
|
|
MAIN FAN
|
MAIN FAN fuse
• High speed fan control relay No.1
-
- Cooling fan motor No.1
|
|
IG MAIN
|
IG MAIN fuse
• IG KEY1 fuse
• Starter relay
-
- Starter
|
|
IG KEY1
|
IG KEY1 fuse
• Ignition switch
|
|
FUEL
|
FUEL fuse
• Fuel pump relay
-
- Inertia fuel pump stop switch
-
- PCM
|
|
ALT
|
ALT fuse
• Generator
|
|
INJ
|
INJ fuse
• EEC fuse
• Main relay
-
- PCM
-
- Fuel injectors
-
- Ignition coils
-
- Condenser
-
- Fuel pump relay
-
- HEGO fuse
-
- MAF sensor
-
- ISC valve
|
|
EEC
|
EEC fuse
• PCM
|
|
HEGO
|
HEGO fuse
• O2 sensor (Right front)
-
- PCM
• O2 sensor (Right rear)
-
- PCM
• O2 sensor (Left front)
-
- PCM
• O2 sensor (Left rear)
-
- PCM
• Purge solenoid valve
-
- PCM
|
If malfunction remains, refer to related Service Information and perform repair or diagnosis.
• If vehicle is repaired, troubleshooting completed.
• If vehicle is not repaired or additional diagnostic information is not available, replace or reprogram PCM.
