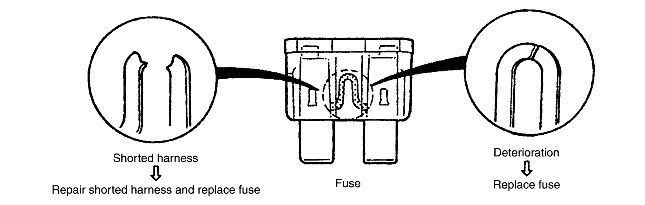

Damaged fuse
|
Related wiring harness
|
|
MAIN
|
Main fuse
• BTN2 fuse
• MAIN FAN1 fuse
• MAIN FAN2 fuse
• Generator
• IG MAIN fuse
|
|
BTN2
|
BTN2 fuse
• ROOM fuse
|
|
ROOM
|
ROOM fuse
• DLC
|
|
MAIN FAN1
|
MAIN FAN1fuse
• Cooling fan relay NO.2
-
- Cooling fan control module
|
|
MAIN FAN2
|
MAIN FAN2 fuse
• Cooling fan relay NO.1
-
- Cooling fan control module
|
|
IG MAIN
|
IG MAIN fuse
• Starter relay
-
- Starter
• IG KEY fuse
|
|
IGKEY
|
IG KEY fuse
• Ignition switch
|
|
FUEL
|
FUEL fuse
• Fuel pump relay
-
- Inertia fuel shutoff (IFS) switch
-
- PCM
|
|
INJ
|
INJ fuse
• Main relay
-
- HEGO fuse
-
- PCM
-
- Ignition coil
-
- Condenser
-
- Fuel pump relay
-
- Fuel injectors
-
- EGR valve
-
- VICS solenoid valve
-
- VTC solenoid valve
-
- Purge solenoid valve
-
- MAF sensor
|
|
HEGO
|
HEGO fuse
• O2 sensor
-
- PCM
|
|
ENG
|
ENG fuse
• EEC fuse
|
|
EEC
|
EEC fuse
• Main relay
|
