REAR OIL SEAL REMOVAL/INSTALLATION [AJ (3.0L Duratec)]

Removal

1. Remove the drive plate. (See DRIVE PLATE REMOVAL [LA4AX-EL (CD4E)].)

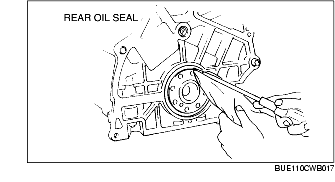

2. Using a flathead screwdriver, remove the rear oil seal.

Installation

1. Using the SST, install the rear oil seal.

Note

• Lubricate the crankshaft rear oil lip with engine oil.

Press-in amount

0-2.0 mm {0-0.078}

2. Install the drive plate. (See DRIVE PLATE REMOVAL [LA4AX-EL (CD4E)].)
