No.3 ENGINE MOUNT REMOVAL/INSTALLATION [AJ (3.0L Duratec)]


id0110a3802300

Removal/Installation

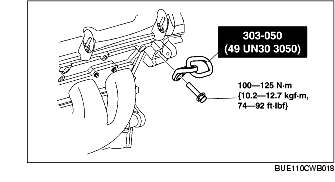

1. Install the SST to the cylinder head (RH) at the position shown in the figure using the bolt (part number 9XG0 16 27X1, or a M12X1.75 bolt with a nominal length of 33 mm {1.3 in}.)

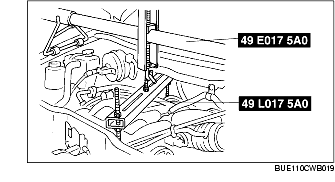

2. Support the engine using the SST.

3. Remove the A/C line bracket bolt and move it to the side of the A/C line.

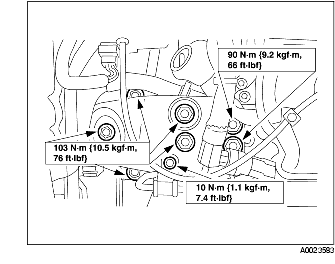

4. Remove No.3 engine mount nuts and bolts. Position the power steering line and bracket out of the way. Remove the No.3 engine mount.

5. Install in the reverse order of removal.
