1. Raise and support the vehicle.

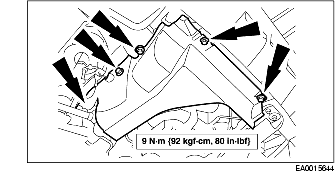

2. Remove the bolts and the RH lower splash shield.

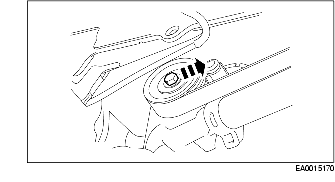

3. Remove the drive belt.

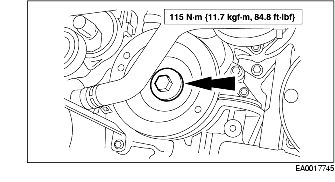

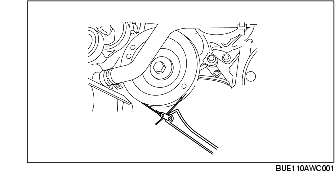

4. Hold the crankshaft pulley using a commercially available tool and loosen the bolt retaining the crankshaft pulley.
5. Remove the bolt and the crankshaft pulley.
6. To install, reverse the removal procedure.
1. Remove the timing belt. (See TIMING BELT REMOVAL/INSTALLATION [YF (2.0L Zetec)].)

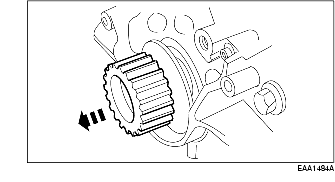

2. Remove the crankshaft sprocket and timing belt guide.
3. Remove the crankshaft front seal from the oil pump using a flathead screwdriver.

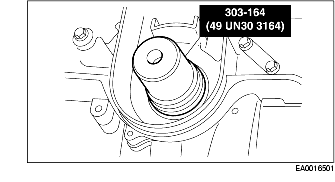

1. Using the special tool, install a new crankshaft front seal.

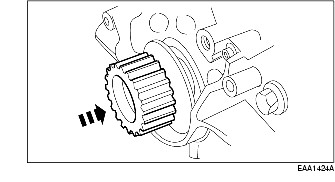

2. Install the timing belt guide and crankshaft sprocket.
3. Install the timing belt. (See TIMING BELT REMOVAL/INSTALLATION [YF (2.0L Zetec)].)
