DRIVE BELT REPLACEMENT [YF (2.0L Zetec)]


id0110c9803800

Removal and Installation

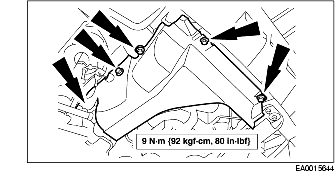

1. Remove the bolts and the right front lower splash shield.

2. Remove the right front wheel and tire.

3. Rotate the drive belt tensioner clockwise and remove the drive belt.

4. To install, reverse the removal procedure.
