OIL PUMP REMOVAL/INSTALLATION [AJ (3.0L Duratec)]

id0111008006a2

Removal

1. Disconnect the negative battery cable.

2. Remove the timing drive component.

3. Remove the oil pan. (See OIL PAN REMOVAL/INSTALLATION [AJ (3.0L Duratec)].)

4. Remove the oil strainer. (See OIL STRAINER REMOVAL/INSTALLATION [AJ (3.0L Duratec)].)

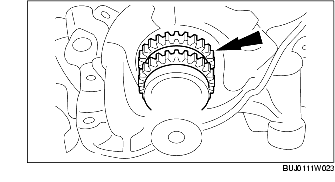

5. Remove the dumper bolt and crankshaft sprocket.

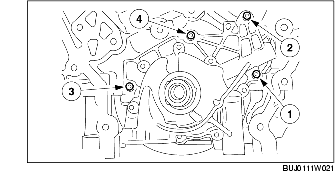

6. Remove the bolts in the order show in the figure and remove the oil pump.

Installation

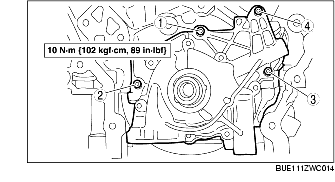

1. Position the oil pump, and tighten the bolts in the order indicated in the table.

2. Install the crankshaft sprocket.

3. Install the oil strainer. (See OIL STRAINER REMOVAL/INSTALLATION [AJ (3.0L Duratec)].)

4. Install the timing drive component.

5. Connect the negative battery cable.
