OIL FILTER REPLACEMENT [L3]

Warning

• Remove and install all parts when the engine is cold, otherwise they can cause severe burns or serious injury.

• A vehicle that is lifted but not securely supported on safety stands is dangerous. It can slip or fall, causing death or serious injury. Never work around or under a lifted vehicle if it is not securely supported on safety stands.

• Continuous exposure to used engine oil has caused skin cancer in laboratory mice. Protect your skin by washing with soap and water immediately after working with engine oil.

Caution

• In case you spill engine oil on the exhaust system, wipe it off completely. If you fail to wipe the spilled engine oil, it will produce fumes because of the heat.

Spin-on Type

1. Position the splash shield (RH) out of the way. (R.H.D.)

2. Remove the oil filter using a commercially available, cap-type oil filter wrench (76 mm {3.0 in} diameter, 15 sided).

3. Use a clean rag to wipe off the mounting surface.

4. Apply clean engine oil to the gasket of a new oil filter.

5. Tighten the oil filter using cap-type oil filter wrench with specified tightening torque.

Tightening torque

15-20 N·m {1.6-2.0 kgf·m, 11-14 ft·lbf}

6. Fill with the specified amount of engine oil. (See ENGINE OIL REPLACEMENT [L3].)

7. Start the engine and confirm that there is no oil leakage.

• If there is oil leakage, find the cause and repair or replace the applicable part.

8. Inspect the oil level. (See ENGINE OIL LEVEL INSPECTION.)

9. Install the splash shield (RH). (R.H.D.)

Cartridge Type

1. Position the splash shield (RH) out of the way. (R.H.D.)

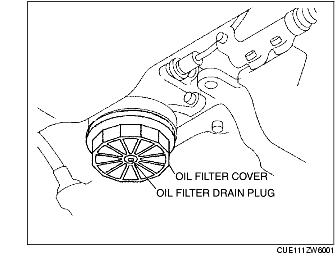

2. Loosen the oil filter drain plug. (Don't remove.)

3. Loosen the filter cover for 1 turn using a commercially available, cap-type oil filter wrench (74 mm {2.9 in} diameter, 14 sided).

4. Remove the oil filter drain plug, and drain the engine oil.

Note

• Oil could be easily drained when the air is in the filter.

5. Loosen the oil filter cover for another 1 turn.

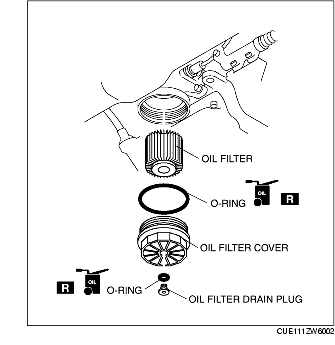

6. Remove the oil filter cover and the oil filter.

7. Use a clean rag to wipe off the mounting surface on the oil filter adapter and the oil filter cover.

8. Apply clean engine oil to the new O-ring of the oil filter cover.

9. Apply clean engine oil to the new O-ring of the oil filter drain plug.

10. Install the oil filter, oil filter drain plug, and oil filter cover.

11. Tighten the oil filter cover and oil filter drain plug.

Tightening torque:

Oil filter cover: 30-35 N·m {3.0-3.6 kgf·m, 22.2-25.8 ft·lbf}

Oil filter drain plug: 9-10 N·m {91.8-101.9 kgf·cm, 79.6-88.4 in·lbf}

12. Fill with the specified amount of engine oil. (See ENGINE OIL REPLACEMENT [L3].)

13. Start the engine and confirm that there is no oil leakage.

• If there is oil leakage, find the cause and repair or replace the applicable part.

14. Inspect the oil level. (See ENGINE OIL LEVEL INSPECTION.)

15. Install the splash shield (RH). (R.H.D.)
