OIL FILTER REPLACEMENT [YF (2.0L Zetec)]

1. Drain the engine coolant. (See ENGINE COOLANT REPLACEMENT [YF (2.0L Zetec)].)

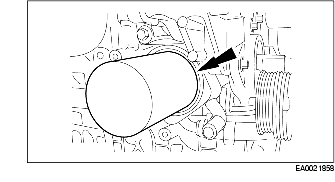

2. Remove the oil filter.

Caution

• The oil cooler sealing surfaces are soft metals. Do not use abrasive grinding discs to remove gasket material; only use manual scrapers. Do not scratch or gouge sealing surfaces or oil leaks may occur.

3. Carefully clean the sealing surfaces.

• Install a new oil filter.

4. To install, reverse the removal procedure.
