DIPSTICK COMPONENT REMOVAL/INSTALLATION [AJ (3.0L Duratec)]


id0111008010a2

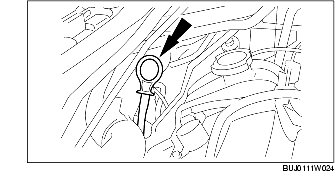

1. Remove the dipstick.

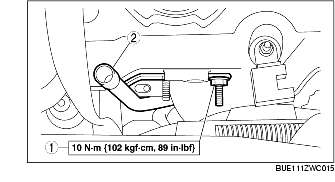

2. Remove the dipstick pipe.

(1) Remove the stud.
(2) Remove the dipstick pipe.

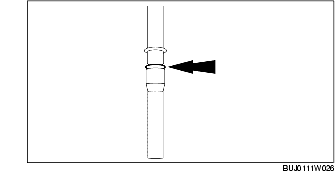

3. Inspect the O-ring at the end of the dipstick pipe, apply clean engine oil to the new O-ring if necessary, and install.

4. Install in the reverse order of removal.
