1. Drain the engine cooling system. (See ENGINE COOLANT REPLACEMENT [YF (2.0L Zetec)].)
2. Remove the front bumper.
3. Remove the lower splash shields.

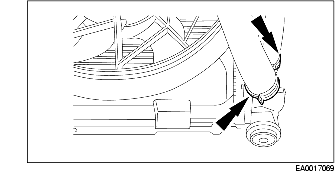

4. Disconnect the lower radiator hose and the degas return hose.
5. Lower the vehicle.
6. Disconnect the remaining coolant hose connections.
7. Position the hood latch assemble out of the way.

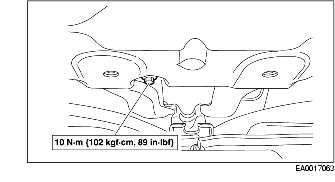

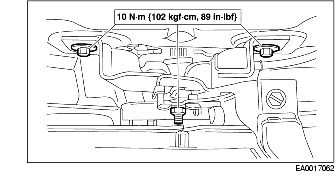

8. Remove the two bolts and the center support.

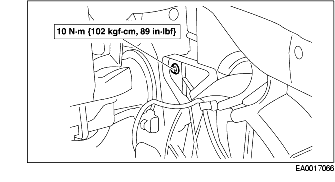

9. Remove the two top bolts retaining the cooling fan to the radiator.

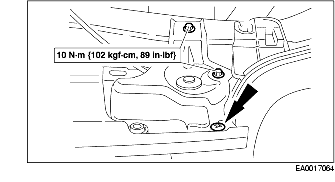

10. Remove the upper radiator support brackets, and remove the radiator from the vehicle.
11. To install, reverse the removal procedure.
