COOLING FAN MOTOR INSPECTION [L3]

id0112008018a1

Part Inspection

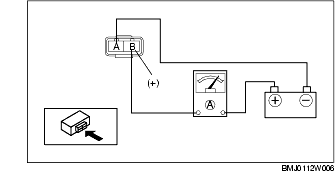

1. Verify that the battery positive voltage is 12 V.

2. Connect the tester and battery to the fan motor side male connector of the fan control module connector.

3. Verify that the fan motor rotates smoothly with the specified current.

• If there is any malfunction, replace the applicable part.


Item	Current (A)
Main fan	3.0-6.0
Additional fan	6.5-9.5
