COOLING FAN MOTOR INSPECTION [AJ (3.0L Duratec)]
id0112008018a2
Part Inspection

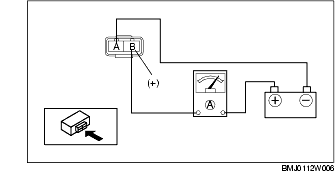

1. Verify that the battery positive voltage is 12 V.
2. Verify that the fan motor rotates smoothly with the specified current.
-
• If there is any malfunction, replace the applicable part.
|
Item
|
Current (A)
|
|
Main fan
|
14.5-17.5
|
|
Additional fan
|
16.5-13.5
|
