ACCELERATOR CABLE BRACKET REMOVAL/INSTALLATION [AJ (3.0L Duratec)]

1. Remove the plug hole plate.

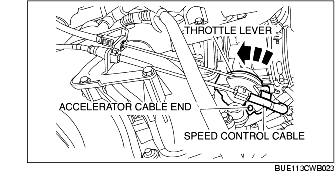

2. For vehicles with a speed control cable, detach the speed control cable from the throttle lever.

3. Rotate the throttle lever and remove the accelerator cable end from the throttle lever.

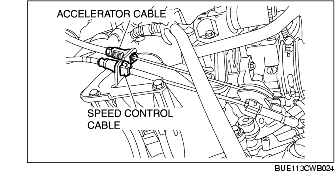

4. Detach the accelerator cable from the bracket.

5. For vehicles with a speed control cable, push in the tabs and detach the speed control cable from the accelerator cable bracket.

6. Remove the accelerator cable bracket.

7. Install in the reverse order of removal.

Accelerator cable bracket installation bolt tightening torque

10 N·m {102 kgf·cm, 89 in·lbf}

Plug hole plate installation nut tightening torque

6 N·m {61 kgf·cm, 53 in·lbf}
