DYNAMIC CHAMBER REMOVAL/INSTALLATION [AJ (3.0L Duratec)]

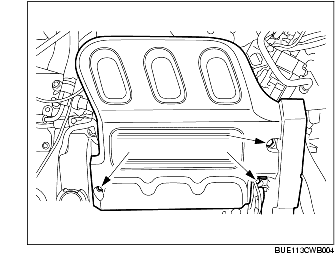

1. Remove the plug hole plate.

2. Remove the air hose. (See AIR HOSE REMOVAL/INSTALLATION [AJ (3.0L Duratec)].)

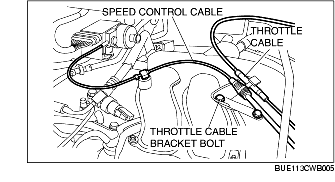

3. Detach the throttle cable from the throttle body.

4. Detach the speed control cable from the throttle body. (Only vehicles with speed control cable)

5. Remove the throttle cable bracket bolts.

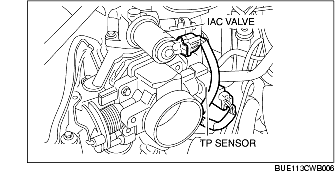

6. Disconnect the throttle position sensor and IAC solenoid valve connector.

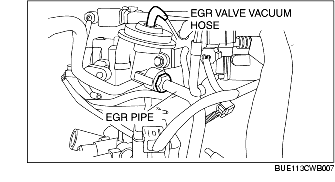

7. Remove the EGR valve vacuum hose and EGR pipe nut.

8. Disconnect the following hoses or connectors

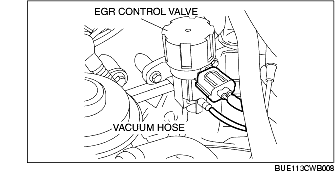

(1) EGR control valve connector and vacuum hose

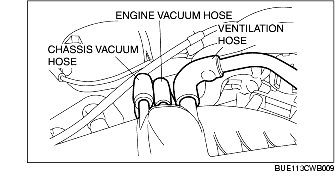

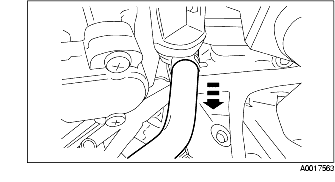

(2) Three vacuum hoses located behind the dynamic chamber

(3) Purge solenoid valve vacuum hose

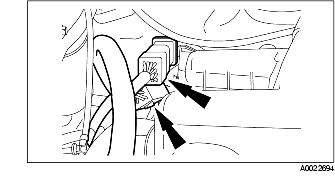

(4) Two connectors installed on the left side of the dynamic chamber

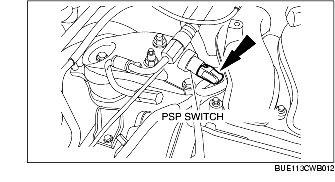

(5) P/S pressure switch connector

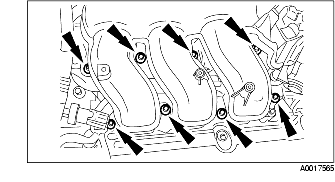

9. Remove the dynamic chamber installation bolts and dynamic chamber.

Note

• If the gasket is damaged, replace with a new one.

• Clean all of the sealing surfaces.

10. Install in the reverse order of removal.

Plug hole plate installation nut tightening torque

6 N·m {61 kgf·cm, 53 in·lbf}
