RESONANCE CHAMBER REMOVAL/INSTALLATION [AJ (3.0L Duratec)]

1. Remove the front wheel (LH).

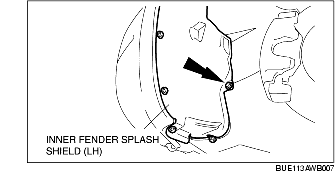

2. Remove the seven pin-type retainers and four screws, and then position the inner fender splash shield (LH) out of the way.

3. Remove the resonance chamber installation bolt and resonance chamber.

Note

• Verify that the front rubber grommet is installed securely to the bracket.

4. Install in the reverse order of removal.

Resonance chamber installation bolt tightening torque

8 N·m {82 kgf·cm, 71 in·lbf}
