AIR CLEANER REMOVAL/INSTALLATION [AJ (3.0L Duratec)]

1. Disconnect the air hose. (See AIR HOSE REMOVAL/INSTALLATION [AJ (3.0L Duratec)].)

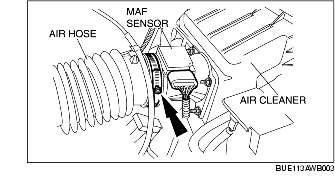

2. Disconnect the MAF sensor connector.

3. Remove the air cleaner.

Note

• Verify that the two air cleaner supports are securely installed to the rubber grommet under the air cleaner.

• To prevent unmeasured air from entering the engine, securely seal the air hose.

4. Install in the reverse order of removal.

Air cleaner installation bolt tightening torque

8 N·m {82 kgf·cm, 71 in·lbf}

Air hose clamp tightening torque

3 N·m {31 kgf·cm, 27 in·lbf}
