IDLE AIR CONTROL (IAC) VALVE INSPECTION [AJ (3.0L Duratec)]

Resistance Inspection

1. Disconnect the negative battery cable.

2. Disconnect the IAC valve connector.

3. Using a tester, measure the resistance between the IAC valve terminals.

• If it is within the specification, inspect the related harnesses.

• If it is not within the specification, replace the IAC valve.

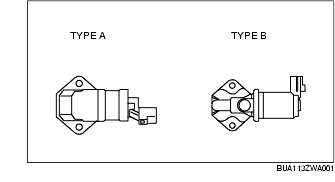

IAC valve resistance

TYPE A: 8.8-10.6 ohms [24 °C {75 °F}]

TYPE B: 8.6-10.6 ohms [24 °C {75 °F}]
