IDLE AIR CONTROL (IAC) SOLENOID VALVE REMOVAL/INSTALLATION [AJ (3.0L Duratec)]

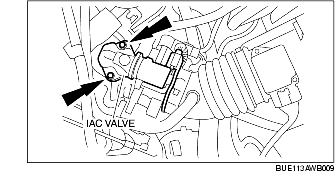

1. Disconnect the IAC solenoid valve connector.

2. Remove the IAC solenoid valve installation bolts and IAC solenoid valve.

Note

• Replace the gasket with a new one.

3. Install in the reverse order of removal.

IAC solenoid valve installation bolt tightening torque

10 N·m {102 kgf·cm, 86 in·lbf}
