ACCELERATOR PEDAL REMOVAL/INSTALLATION [YF (2.0L Zetec)]

1. Disconnect the accelerator cable. (See ACCELERATOR CABLE REMOVAL/INSTALLATION [YF (2.0L Zetec)].)

2. Detach the accelerator cable from the panel.

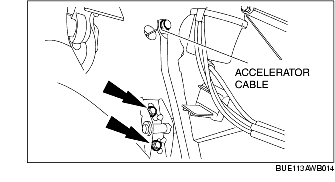

3. Remove the installation bolts of the accelerator pedal and shaft, and then remove the accelerator pedal and shaft.

4. To ensure installation serviceability, remove the grommet from the throttle lever and install it to the accelerator cable end.

5. Install in the reverse order of removal.

Accelerator pedal, shaft installation bolt tightening torque

9 N·m {92 kgf·cm, 80 in·lbf}

Plug hole plate installation nut tightening torque

6 N·m {61 kgf·cm, 53 in·lbf}
