AIR HOSE REMOVAL/INSTALLATION [YF (2.0L Zetec)]

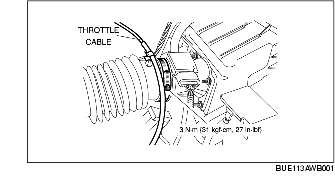

1. Unclip the throttle cable from the air hose.

2. Loosen the screw clamp and disconnect the air hose.

3. Disconnect the air hose from the throttle body.

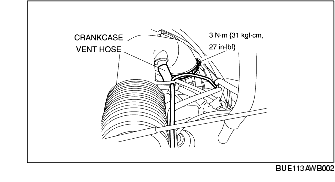

4. Disconnect the crankcase vent hose.

5. Remove the air hose.

6. Install in the reverse order of removal.

Air hose clamp tightening torque

3 N·m {31 kgf·cm, 27 in·lbf}
