THROTTLE BODY REMOVAL/INSTALLATION [YF (2.0L Zetec)]

Warning

• Fuel vapor is hazardous. It can easily ignite, causing serious injury and damage. To prevent this, always keep sparks and flames away when handling fuel system components and keep them away from the components near the fuel system.

Caution

• Since the throttle body bore and plate area have a special coating, they cannot be cleaned.

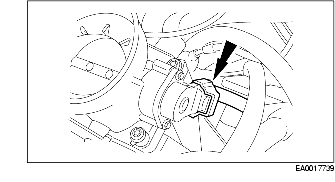

1. Disconnect the TP sensor connector.

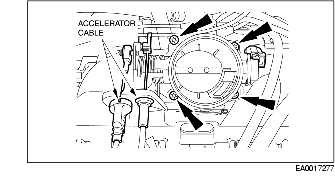

2. Remove the throttle body.

Note

• Replace the gasket with a new one.

3. Install in the reverse order of removal.

Throttle body installation bolt tightening torque

7 N·m {71 kgf·cm, 62 in·lbf}
