SHREDDER VALVE REMOVAL INSTALLATION [AJ (3.0L Duratec)]


id0114a1802500

1. Release the fuel pressure. (See BEFORE SERVICE PRECAUTION [AJ (3.0L Duratec)].)

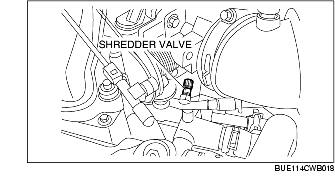

2. Remove the shredder valve.

3. Install in the reverse order of removal.
