FUEL FILTER (HIGH-PRESSURE) REMOVAL/INSTALLATION [AJ (3.0L Duratec)]

1. Perform the fuel line safety procedure. (See BEFORE SERVICE PRECAUTION [AJ (3.0L Duratec)].)

2. Remove the battery cover.

3. Disconnect the negative battery cable.

Note

• Place an appropriate container under the fuel filter (high-pressure).

4. Disconnect the fuel hose and fuel filter (high-pressure). (See QUICK RELEASE CONNECTOR REMOVAL/INSTALLATION [AJ (3.0L Duratec)].)

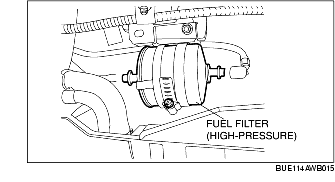

5. Loosen the clamp and remove the fuel filter (high-pressure).

Note

•  If the fuel hose is removed, replace the quick connector retainer with a new one.

6. Install in the reverse order of removal.
