FUEL FILLER PIPE REMOVAL/INSTALLATION [AJ (3.0L Duratec)]

1. Remove the rear wheel (LH).

2. Remove the fuel-filler cap.

3. Remove the filler neck retaining screws.

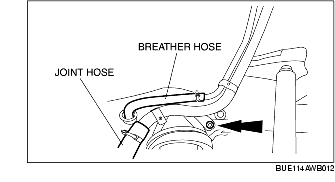

4. Remove the rivets and the fuel filler pipe shield.

5. Disconnect the breather hose and joint hose.

6. Remove the fuel-filler pipe.

7. Install in the reverse order of removal.

Fuel filler pipe installation bolt tightening torque

10 N·m {102 kgf·cm, 89 in·lbf}
