FUEL PUMP STOP SWITCH REMOVAL/INSTALLATION [L3]

1. Remove the pin type retainer and the nut for the cowl side trim panel.

2. Remove the cowl side trim panel.

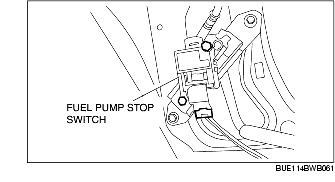

3. Disconnect the fuel pump stop switch connector.

4. Remove the fuel pump stop switch.

5. Install the fuel pump stop switch.

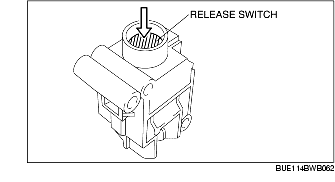

6. Verify that the release switch is pushed in.

• If if is not pushed in, push in the release switch securely.

7. Connect the fuel pump stop switch connector.

8. Install the cowl side trim panel.
