FUEL FILTER (HIGH-PRESSURE) REMOVAL/INSTALLATION [L3]

id0114a2803000

1. Perform the 'Fuel Line Safety Procedure' referring to BEFORE SERVICE PRECAUTION. (See BEFORE SERVICE PRECAUTION [L3].)

2. Disconnect the negative battery cable.

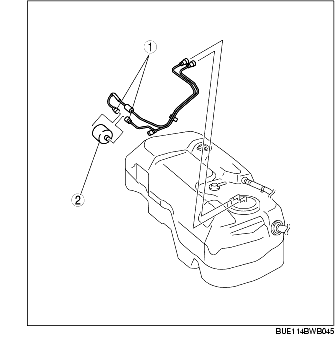

3. Remove in the order indicated in the figure.


1	Quick release connector (See QUICK RELEASE CONNECTOR REMOVAL/INSTALLATION [L3].)
2	Fuel filter (high-pressure)

4. Install in the reverse order of removal.

5. Inspect all related parts by performing AFTER SERVICE PRECAUTION. (See AFTER SERVICE PRECAUTION [L3].)
