FUEL TANK STRAP REMOVAL/INSTALLATION [YF (2.0L Zetec)]

1. Lift up the vehicle.

2. Use a suitable jack to support the fuel tank.

3. Disconnect the pin-type retainer from the fuel tank strap and position the parking brake cable aside.

Note

• For vehicles with 4WD, it will be necessary to disconnect the wiring harness clips from the fuel tank straps.

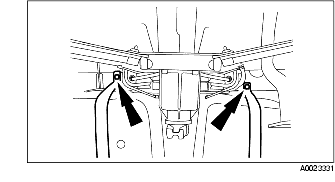

4. Remove the bolts and the fuel tank straps.

5. Install in the reverse order of removal.

Fuel tank strap installation bolt tightening torque

55 N·m {5.6 kgf·m, 41 ft·lbf}
