PRESILENCER REMOVAL/INSTALLATION [YF (2.0L Zetec)]

1. Lift up the vehicle.

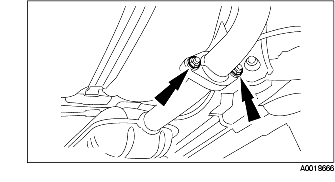

2. Remove and discard the nuts.

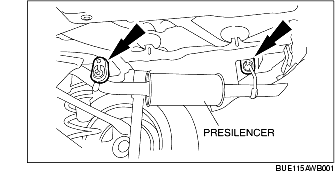

3. Detach the presilencer from the hanger and remove.

• Dispose of the gasket.

4. Install in the reverse order of removal.

• Install a new gasket.

• Install new nuts.

Nut tightening torque

50 N·m {5.1 kgf·m, 37 ft·lbf}
