POSITIVE CRANKCASE VENTILATION (PCV) VALVE INSPECTION [AJ (3.0L Duratec)]

id0116a1800400

1. Remove the PCV valve.

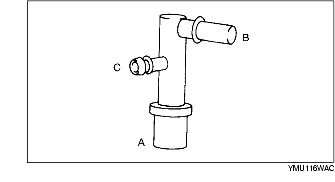

2. Blow air into the PCV valve by mouth and verify that the airflow is as indicated in the following table.

• If the airflow is not as indicated in the following table, replace the PCV valve.

Status

Airflow

From port A to port C
Airflow detected
From port B to port C
Airflow detected
From port B or C to port A
No airflow

•  If there is airflow, replace the PCV valve.

3. Verify that there is airflow when vacuum is applied to port A.

•  If there is no airflow, replace the PCV valve.
