EGR PIPE REMOVAL/INSTALLATION [AJ (3.0L Duratec)]

1. Remove the PCM wiring harness protector tightening bolt and position the PCM wiring harness protector out of the way.

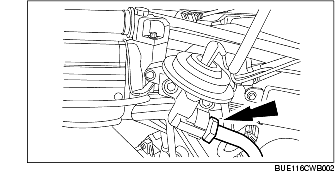

2. Remove the EGR pipe nut from the manifold connector.

3. Remove the differential pressure feedback EGR sensor from the EGR pipe. (See DIFFERENTIAL PRESSURE FEEDBACK (D.P.F.) EGR SENSOR REMOVAL/INSTALLATION [AJ (3.0L Duratec)].)

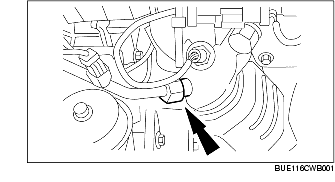

4. Loosen the flare bolt and remove the EGR pipe.

5. Install in the reverse order of removal.

Flare bolt tightening torque

40 N·m {4.1 kgf·m, 30 ft·lbf}
