CHARCOAL CANISTER INSPECTION [L3]

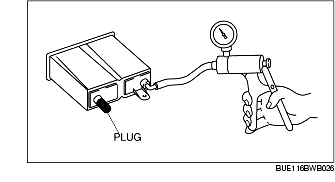

1. Remove the charcoal canister.

2. Plug the charcoal canister atmosphere side.

3. Using a vacuum pump, verify that vacuum is maintained when vacuum is applied from the fuel tank side.

• If there is an air leakage, replace the charcoal canister.
