CHARCOAL CANISTER INSPECTION [YF (2.0L Zetec)]

1. Remove the charcoal canister.

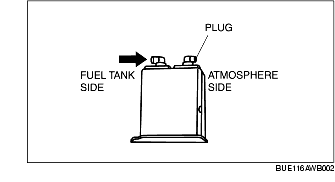

2.• Plug the charcoal canister atmosphere side.

3. Inspect for air leakage when applying air pressure from the fuel tank side.

• If there is an air leakage, replace the charcoal canister.
