IGNITION COIL REMOVAL/INSTALLATION [L3 R.H.D.]

id0118008002b6

1.• Disconnect the negative battery cable.

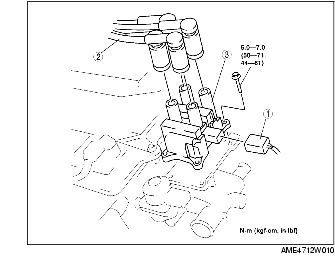

2. Remove in the order indicated in the table.

3. Install in the reverse order of removal.


1	Connector
2	High-tension lead (See HIGH-TENSION LEAD REMOVAL/INSTALLATION [L3 R.H.D.].)
3	Ignition coil
