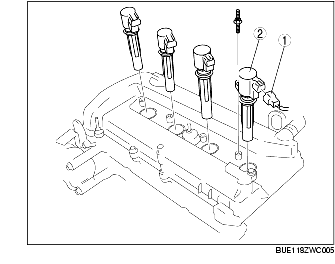

IGNITION COIL REMOVAL/INSTALLATION [L3 L.H.D.]


id0118008002b7

1. Disconnect the negative battery cable.

2. Remove in the order indicated in the table.

3. Install in the reverse order of removal.

1
Connector
2
Ignition coil
