CRUISE ACTUATOR REMOVAL/INSTALLATION

1. Disconnect the negative battery cable.

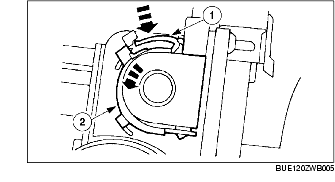

2. Release the actuator cable cap.

(1) Squeeze the actuator cable cap retaining tab.

(2) Rotate the actuator cable cap.

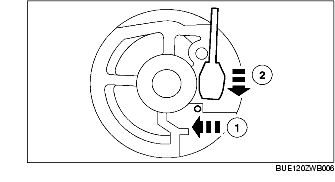

3. Remove the actuator cable.

(1) Depress the spring retainer.

(2) Slide the core wire end out of the cruise control servo pulley and remove the actuator cable.

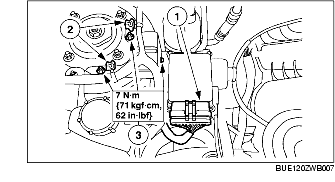

4. Remove the cruise actuator.

(1) Disconnect the cruise actuator connector.

(2) Separate the wire harness from the bracket.

(3) Remove the nuts.

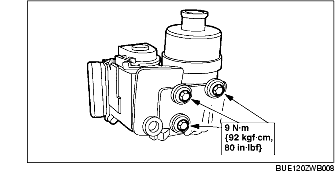

5. Remove the bolts and separate the cruise actuator from the bracket.

6. Install in the reverse order of removal.
