ACTUATOR CABLE REMOVAL/INSTALLATION

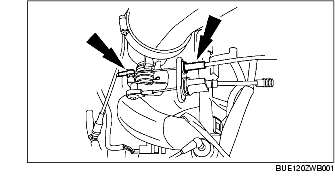

1. Disconnect the actuator cable from the throttle control linkage and bracket. (YF (2.0L Zetec))

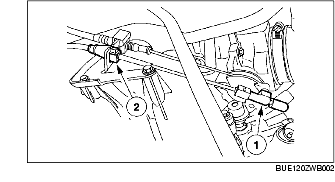

2. Disconnect the actuator cable from the throttle control linkage and bracket. (AJ (3.0L Duratec))

(1) Disconnect the cable from the throttle control linkage.

(2) Squeeze the tabs and disconnect the actuator cable from the bracket.

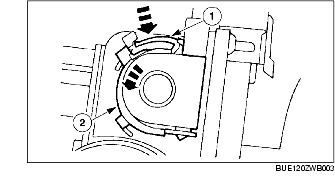

3. Release the actuator cable cap.

(1) Depress the actuator cable cap retaining tab.

(2) Rotate the actuator cable cap.

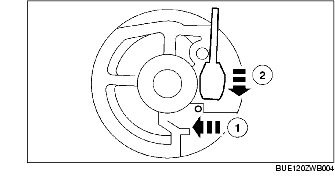

4. Remove the actuator cable.

(1) Depress the spring retainer.

(2) Slide the core wire end out of the cruise control servo pulley and remove the actuator cable.

5. Install in the reverse order of removal.
