CRUISE CONTROL SWITCH REMOVAL/INSTALLATION

A Type

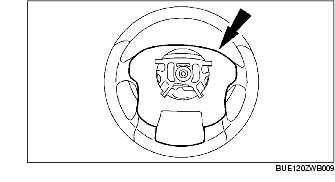

1. Remove the steering wheel.

2. Remove the steering wheel cover.

Warning

• When carrying a live air bag, make sure the bag and trim cover are pointed away from your body. In the unlikely event of an accidental deployment, the bag will then deploy with minimal chance of injury. Failure to follow these instructions may result in personal injury.

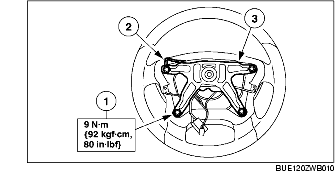

3. Remove the steering wheel frame.

(1) Remove the nuts.

(2) Disconnect the ground wire.

(3) Remove the steering wheel frame.

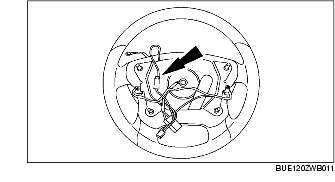

4. Disconnect the cruise control switch connector.

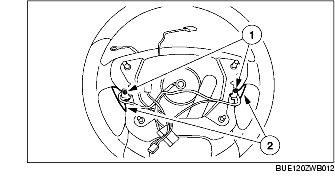

5. Remove the cruise control switches.

(1) Remove the screws.

(2) Remove the cruise control switches.

6. Install in the reverse order of removal.

B Type

See AUDIO CONTROL SWITCH REMOVAL/INSTALLATION.
