BRAKE SWITCH 2 REMOVAL/INSTALLATION

Removal

1. Disconnect the negative battery cable.

2. Remove the brake switch 2.

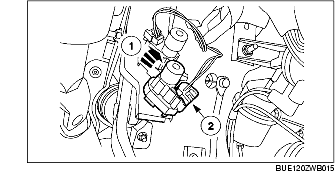

(1) Disconnect the brake switch 2 connector.

(2) Rotate counterclockwise 45 degrees and remove the brake switch 2.

Installation

Caution

• Initial installation of a brake switch 2 allows for one adjustment. If additional adjustments are required, install a new switch.

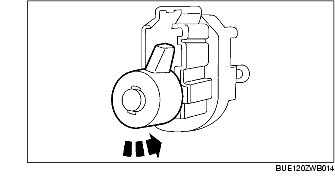

1. Release the plunger lock.

• Turn the lock knob counterclockwise until the first click is felt.

2. Depress the brake pedal.

3. Install the brake switch 2.

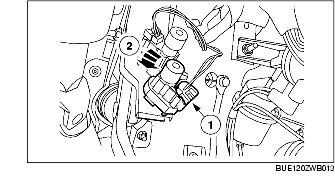

(1) Position the brake switch 2 in the bracket and rotate clockwise 45 degrees.

(2) Connect the brake switch 2 connector.

4. Slowly release the brake pedal and tug moderately once the pedal reaches the rest position.

Note

• There should be an extra click heard when tugging on the brake pedal.
