PCM CONFIGURATION [AJ (3.0L Duratec)]

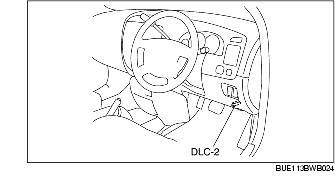

1. Connect the WDS or equivalent to the DLC-2.

2. Select 'Module Programming.'

3. Select 'Programmable Module Installation'.

4. Select PCM.

5. Follow WDS or equivalent instructions.

Note

• DTC P0602 has been recorded in the new PCM and it illuminates the malfunction indicator lamp. (This is not a malfunction.) If the configuration is performed, the DTC P0602 will be cleared.
