CAMSHAFT POSITION (CMP) SENSOR REMOVAL/INSTALLATION [L3]

1. Disconnect the negative battery cable.

Caution

• Do not allow foreign material such as iron filings to adhere to the sensor when replacing the CMP sensor. If it is installed with foreign material adhering, the sensor output signal will malfunction resulting from fluctuation in magnetic flux and cause a deterioration in engine control.

2. Disconnect the CMP sensor connector.

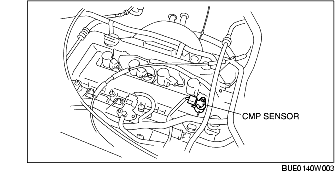

R.H.D. model

L.H.D. model

3. Remove the CMP sensor installation bolt.

4. Remove the CMP sensor from the cylinder head cover.

5. Install in the reverse order of removal.

CMP sensor installation bolt tightening torque

5.5-7.5 N·m {57-76 kgf·cm, 49-66 in·lbf}
